Cavan Lefu Ease Series – with 50.23 kWh IECO Battery Passenger Version

Cavan Lefu Ease Series redefines the all-round value benchmark for urban multi-purpose electric commercial vehicles with its passenger-grade comfortable cabin, 9m³ flexible loading space, 360km high-efficiency range, and semi-solid-state battery safety architecture.

Cavan Lefu Ease Series Specs

The Cavan Lefu Ease Series achieves comprehensive passenger-commercial dual-use coverage with its Argent Émaillé glazed windowed body, 9m³ expandable cargo hold, 105kW motor + 50.23kWh semi-solid-state battery (360km range), L2+ ADAS, and EU-certified cage safety structure.

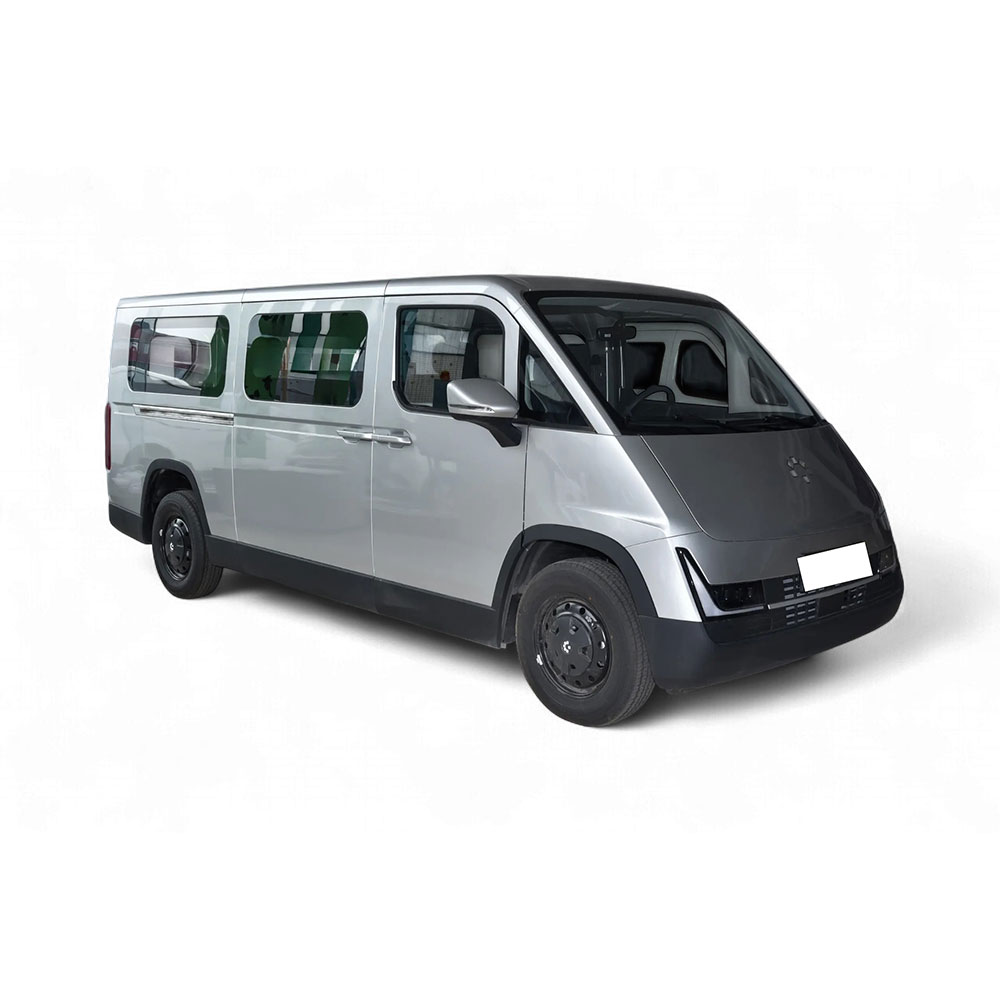

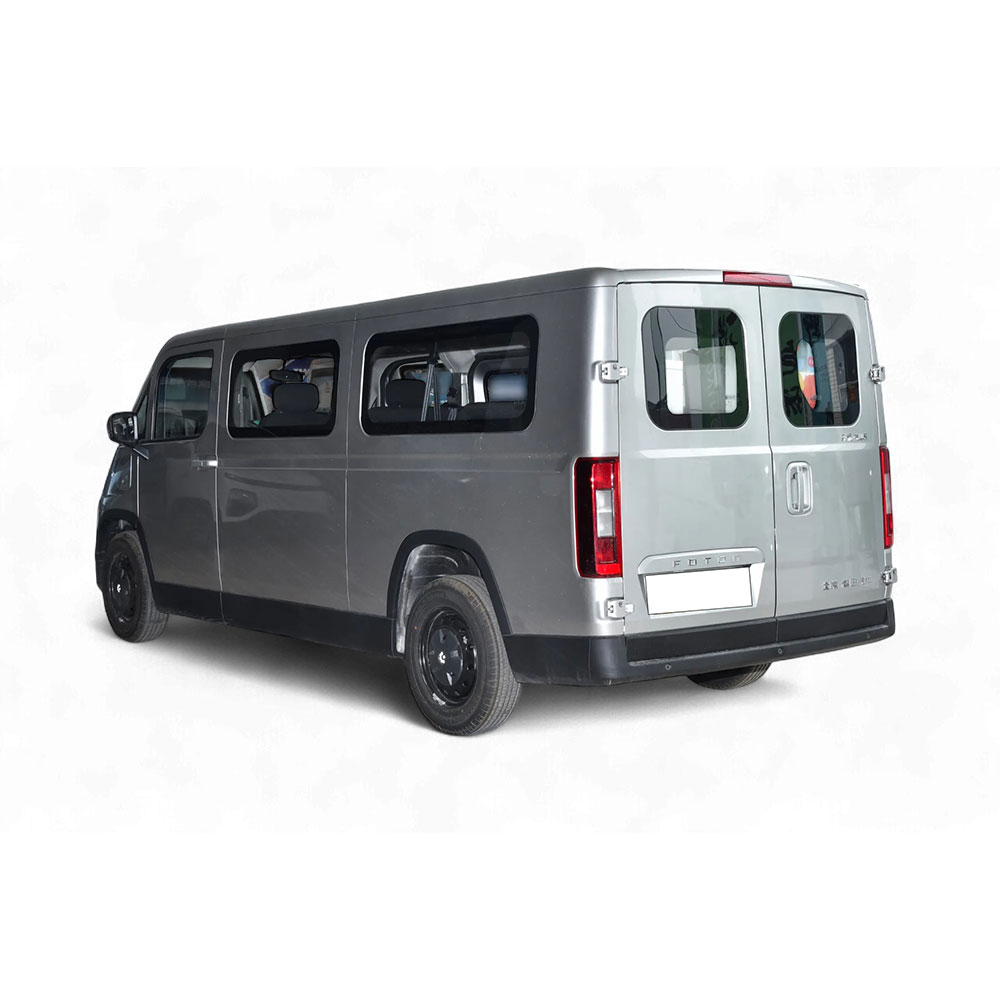

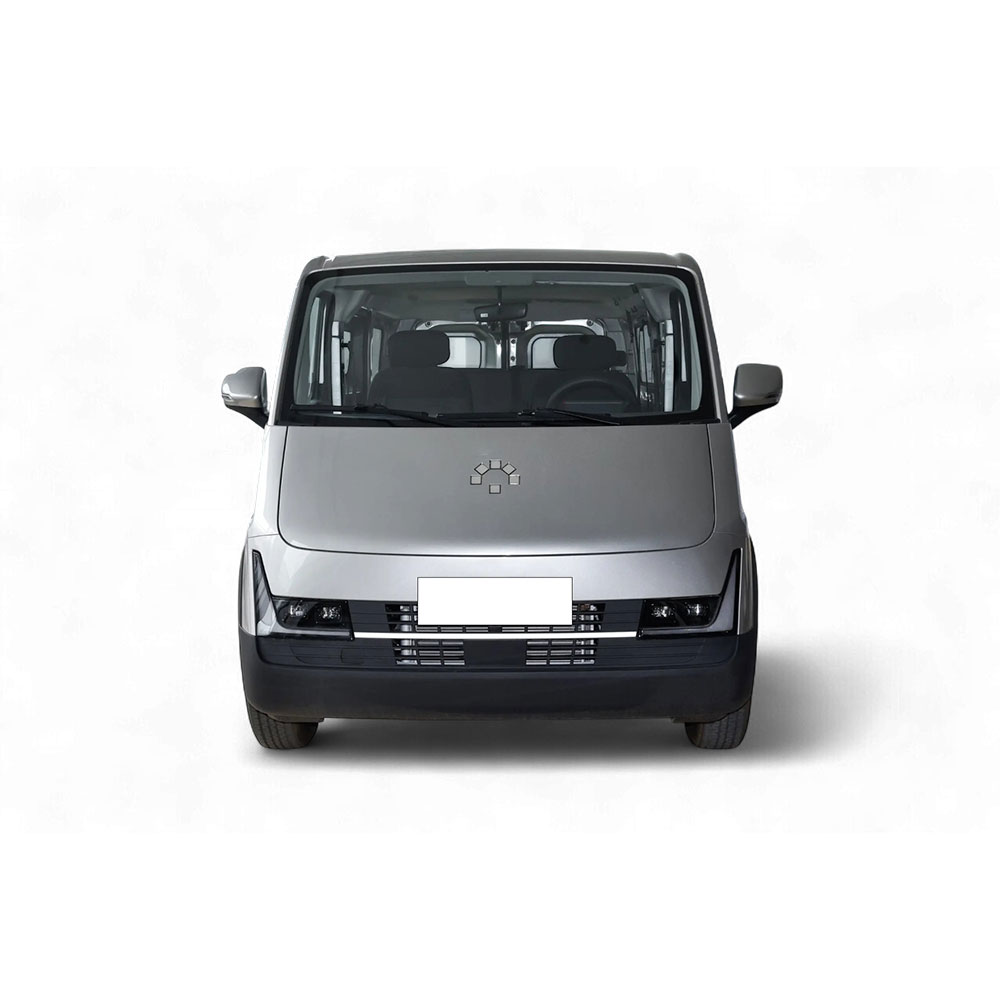

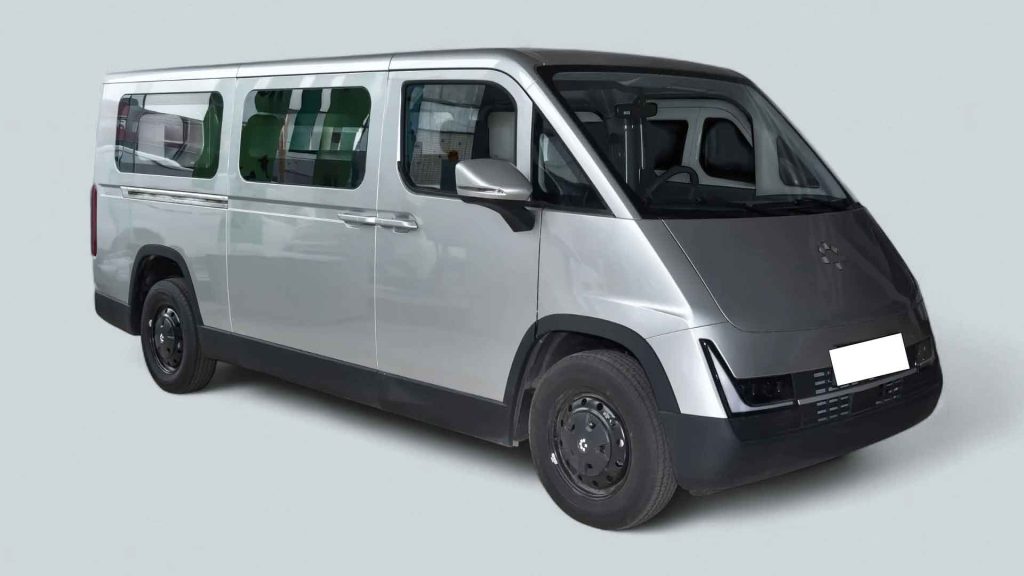

Cavan Lefu Ease Series Exterior Design

Mingchuang (Windowed) design + Falan Silver (Argent Émaillé) glaze craftsmanship, paired with full-width LED light clusters and a low-drag body (drag coefficient 0.29), balances aesthetics and practicality.

Design Language

• New energy features: Full-width LED daytime running lights + hidden high/low beam units, complemented by a luminous FOTON logo to enhance technological appeal; large-inclined front design reduces drag (tested drag coefficient outperforms peers).

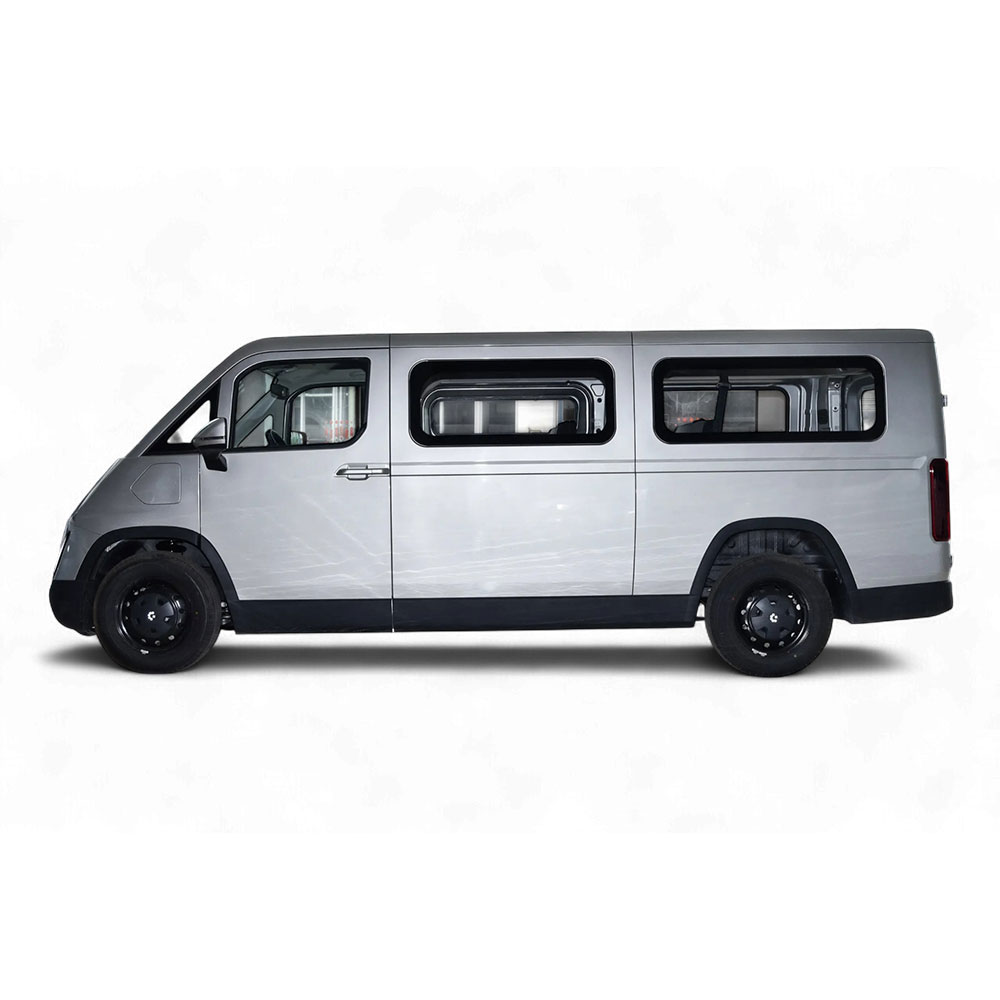

• Body type: Windowed Version features transparent side windows, distinguishing it from blind-window cargo versions, adapting to dual passenger-commercial scenarios (e.g., ride-hailing, family travel).

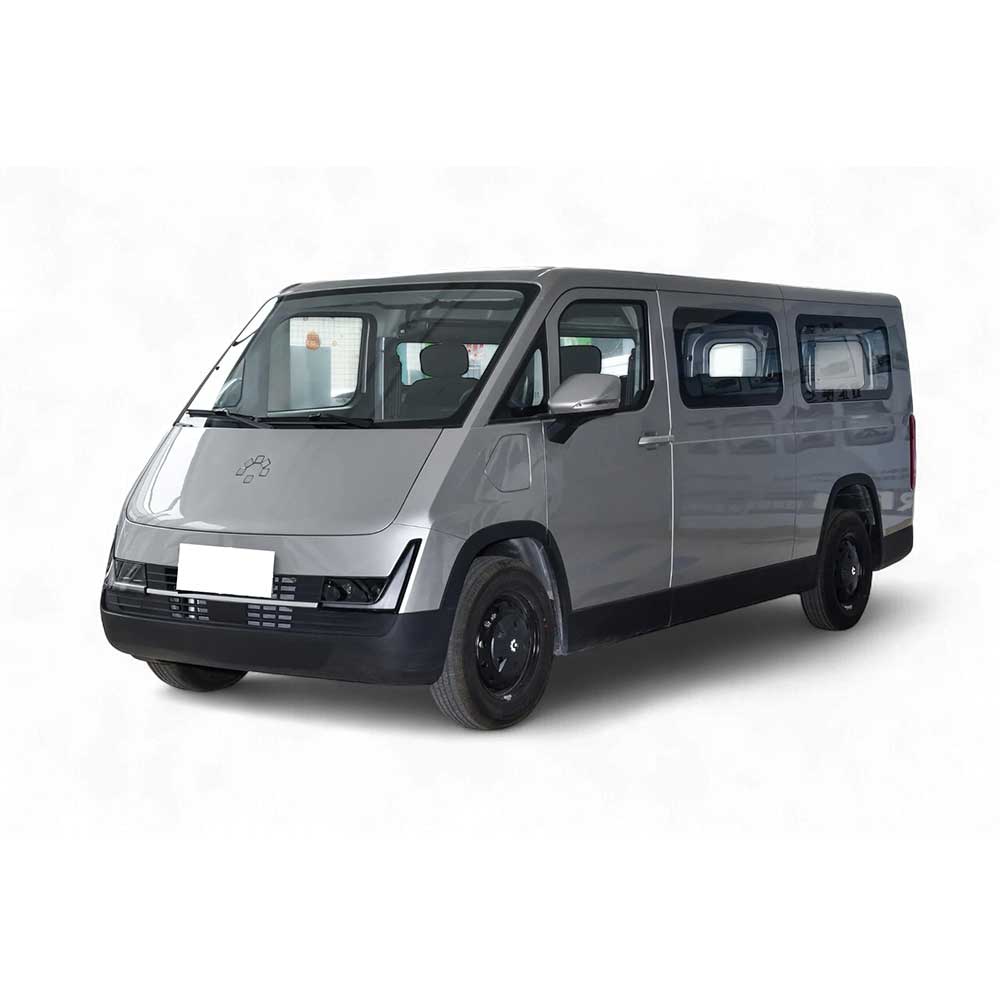

• Color options: Four colors including Sky Blue and Ice Crystal White; “Falan Silver” (Argent Émaillé) adopts nano-ceramic clear coat + metallic mica flake technology, delivering jewelry-like glaze luster.

Functional Structure

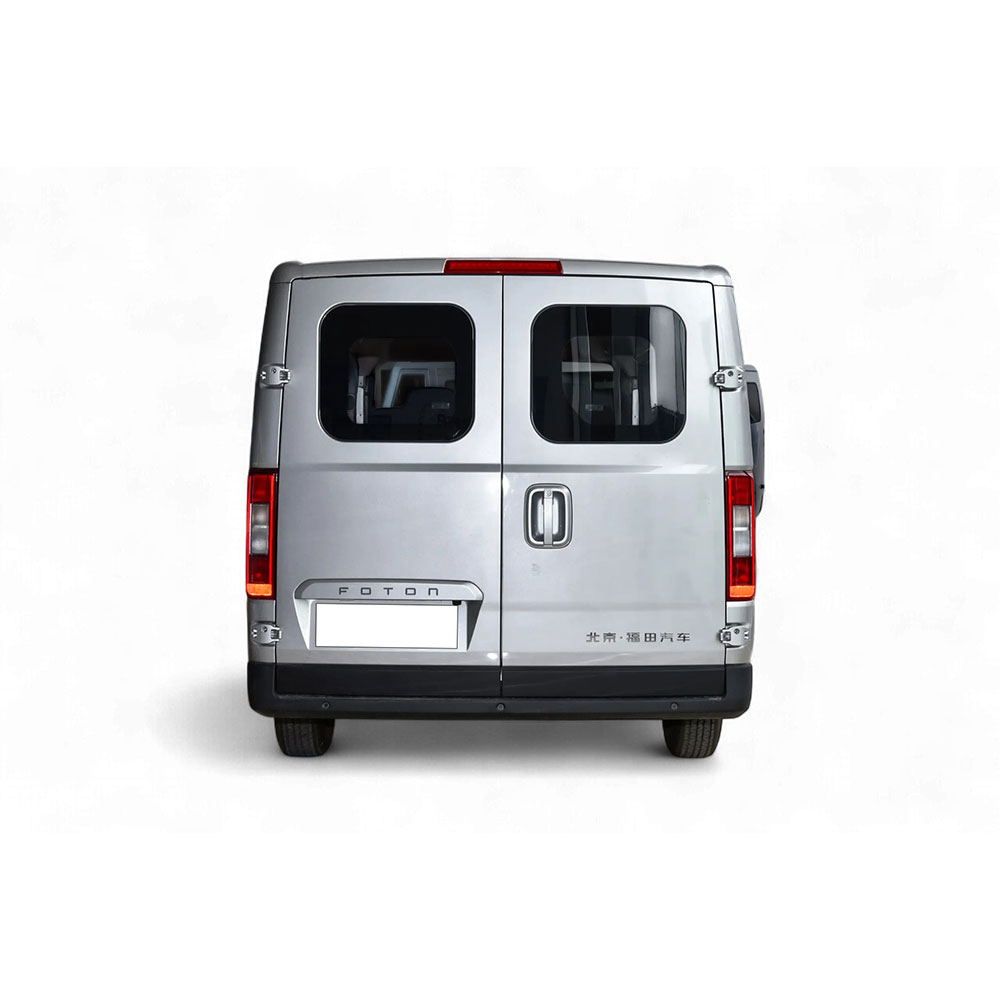

• Door system: Single sliding door (opening width 1.1m, ground clearance 0.47m) + split-type tailgate optimizes loading convenience.
• Size variants: Short-wheelbase (4885mm) and long-wheelbase (5185mm) versions; high-roof variant height reaches 2160mm, improving headroom.

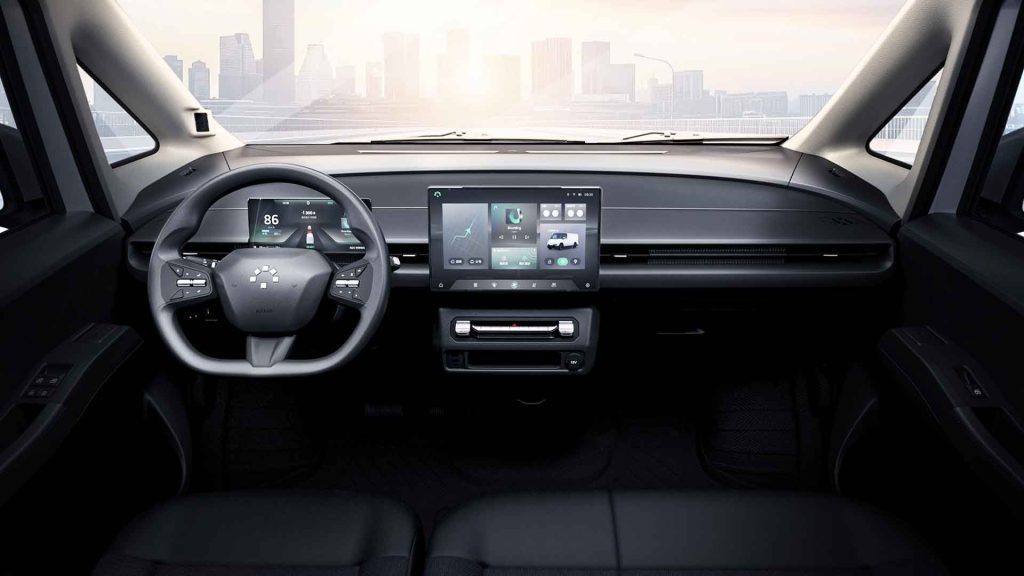

Cavan Lefu Ease Series Interior Layout & Comfort

Dual-purpose fabric seats support full-flat folding, 12.8-inch central screen + 13 storage compartments create an efficient multi-functional cabin.

Cabin Configuration

• Seat design: Fabric driver/passenger seats; co-pilot seat widened by 50% to enable “flat-rest mode”; manual A/C + power-adjustable mirrors standard.

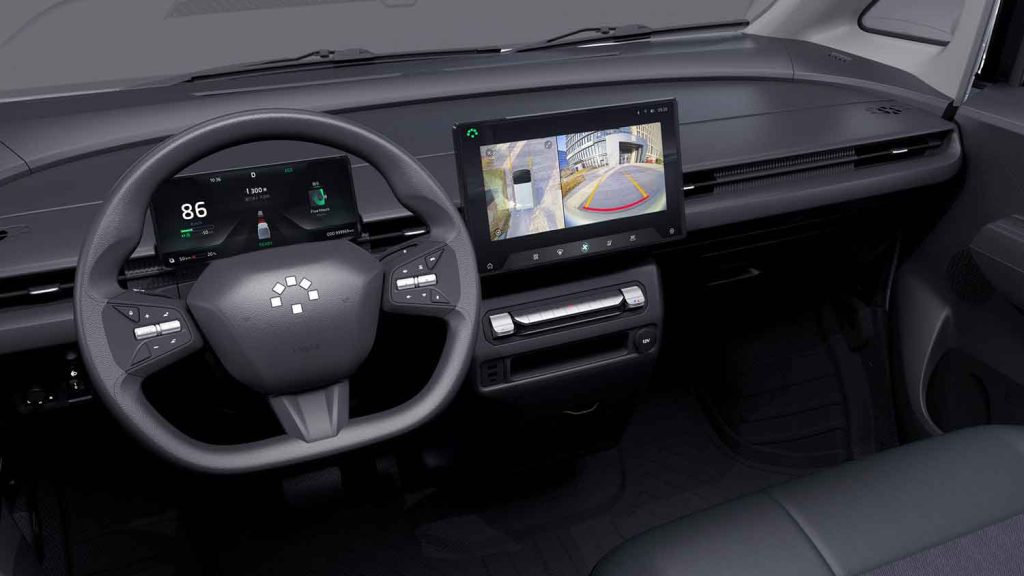

• Human-machine interaction: D-shaped multi-function steering wheel + column-mounted shifter; 12.8-inch central screen integrates navigation/audio/vehicle controls, supporting 360° surround view (with auxiliary lines).

Functional Extensions

• Storage space: 13 storage compartments + 220V power outlet under co-pilot seat (supports external devices).
• Entertainment system: Bluetooth hands-free + USB/AUX audio interfaces meet basic multimedia needs.

Cavan Lefu Ease Series Powertrain & Range Performance

105kW permanent magnet motor + AIEC 50.23kWh semi-solid-state battery achieves 360km CLTC range and ultra-low energy consumption of 14.2kWh/100km.

Three-Electric Core

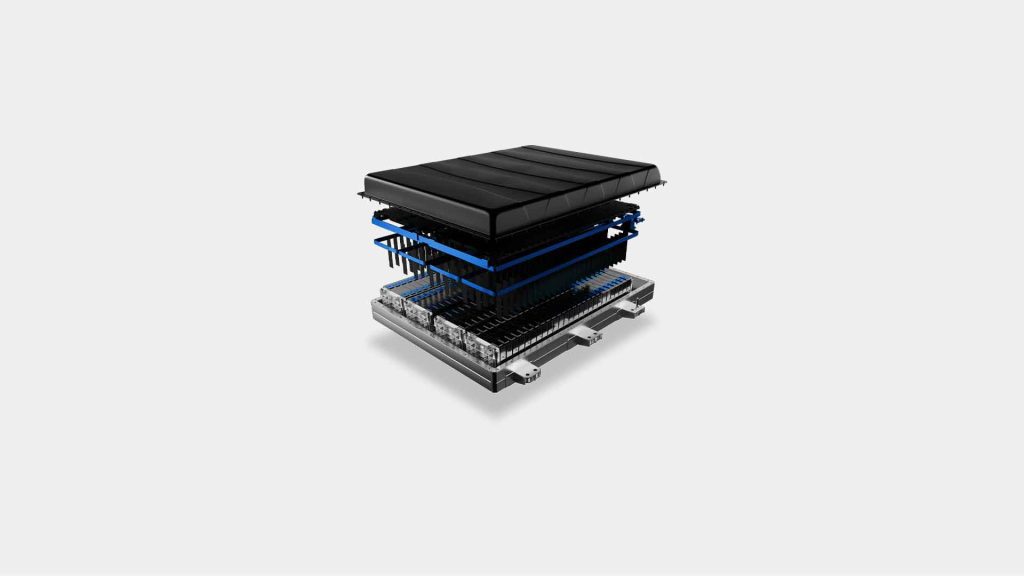

• Battery: AIEC 50.23kWh LFP battery (cells supplied by Qingtao Suzhou), air-cooled, supports fast charging (30min to 80%).
• Motor: Permanent Magnet Synchronous Motor (model TZ180XSCV002), peak power 105kW/torque 210N·m (high-spec: 125kW), top speed 90km/h.

Energy Consumption & Range

• CLTC range 360km, energy consumption 14.2kWh/100km (industry average ~16kWh), enabled by low drag + intelligent energy management.
• Driving modes: Auto-adaptive/ECO/Power; Power mode boosts torque response by 30% for heavy-load climbing.

Cavan Lefu Ease Series Space Design & Utility

Long-wheelbase version: 9m³ cargo compartment + pass-through expandable structure (max. depth 3.3m), 1.1m-wide sliding door optimizes loading efficiency.

Passenger/Cargo Capacity

• Seat layout: Windowed Version offers 6/7/9-seat foldable configurations (long-wheelbase); short-wheelbase mostly 2-seat design.
• Cargo volume: Short-wheelbase 7.15m³ (cargo box 2800×1760×1450mm), long-wheelbase 9.0m³ (3100×1760×1650mm), space utilization 10% higher than peers.

Structural Optimization

• Pass-through design: Seats connect to cargo area, extendable to 3.3m length for long-item transport (e.g., pipes).
• Loading efficiency: 1.4m×1.32m tailgate opening + low-floor sliding door enables direct forklift loading.

Cavan Lefu Ease Series Intelligent Driving & Connectivity

L2+ ADAS includes full-speed ACC/lane keeping, double-tap column shifter for tri-mode driving, ESC enables car-like 5.75m turning radius.

ADAS Functions

• L2+ assistance: Standard cruise control; high-spec adds full-speed ACC + Lane Departure Prevention (LDP) + blind-spot monitoring (23 functions total); mode switch via double-tap shifter.
• Safety alerts: LDW + TPMS + rear radar (high-spec adds rear camera).

Handling Assistance

• Chassis system: ESC + EHB electro-hydraulic braking, turning radius just 5.75m (matches passenger car level).

Cavan Lefu Ease Series Safety Protection Structure

ECE-certified cage body (25% 1500MPa hot-formed steel) + battery nail penetration protection, heavy-load braking distance 15% shorter than peers.

Passive Safety

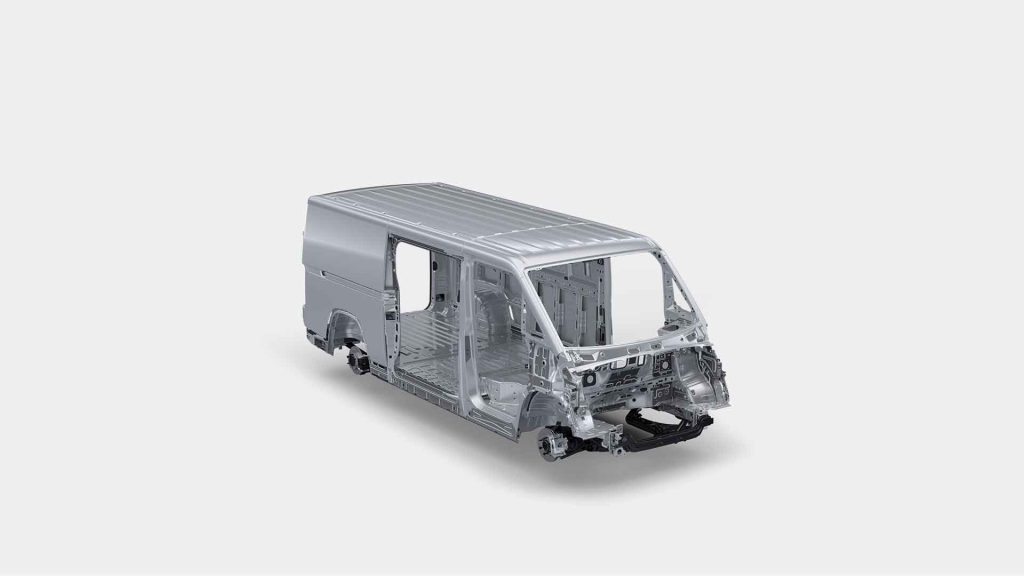

• Body structure: 360° cage-type frame with 25% 1500MPa hot-formed steel, complies with ECE standards.
• Battery protection: AIEC semi-solid-state battery improves puncture resistance by 50%, passes nail penetration/high-temperature tests.

Active Safety

• Braking performance: Front ventilated disc/rear solid disc brakes + ABS+EBD reduce heavy-load braking distance by 15%.
